Atlas Single-Post Lift 6000 Lb – Capacity Portable – ATEXH-PSP-6000-FPD
Atlas Single-Post Lift 6000 Lb – Capacity Portable – ATEXH-PSP-6000-FPD
SKU:30914
In stock

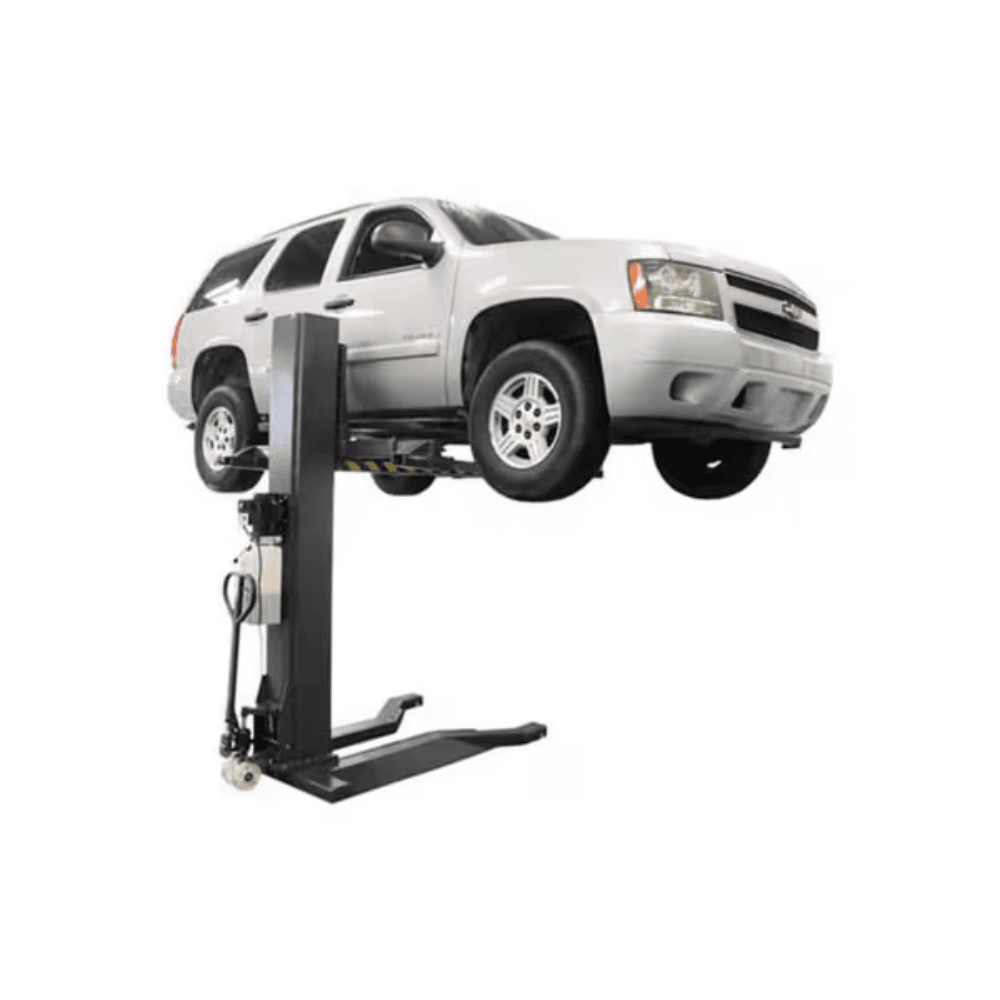

Atlas PSP-6000 Portable Single-Post Lift – 6,000 lb. Capacity
The Atlas PSP-6000 is a highly versatile and portable single-post lift, designed for both commercial service shops and home garages. With a 6,000 lb. lifting capacity, this lift provides unobstructed access to vehicles, making it ideal for wheel service, undercar repairs, and general maintenance.
Its low-profile design, built-in drive-over ramps, and single-point lock release make it a practical and space-saving alternative to permanently mounted lifts. When not in use, the PSP-6000 can be easily rolled out of the way, maximizing garage space.
This lift is suitable for indoor and outdoor use, rolling smoothly on a level concrete surface. With a compact column that fits under a 9-foot ceiling, it accommodates most vehicles while providing ample lifting height for easy access.
Key Features & Benefits
- 6,000 lb. Lifting Capacity – Handles cars, SUVs, and light-duty trucks.
- Portable Design – Easily rolls out of the way when not in use, freeing up garage space.
- Low-Profile Construction – Allows vehicles to drive over the lift for easy positioning.
- Rigid Base Construction – Ensures stability and strength during operation.

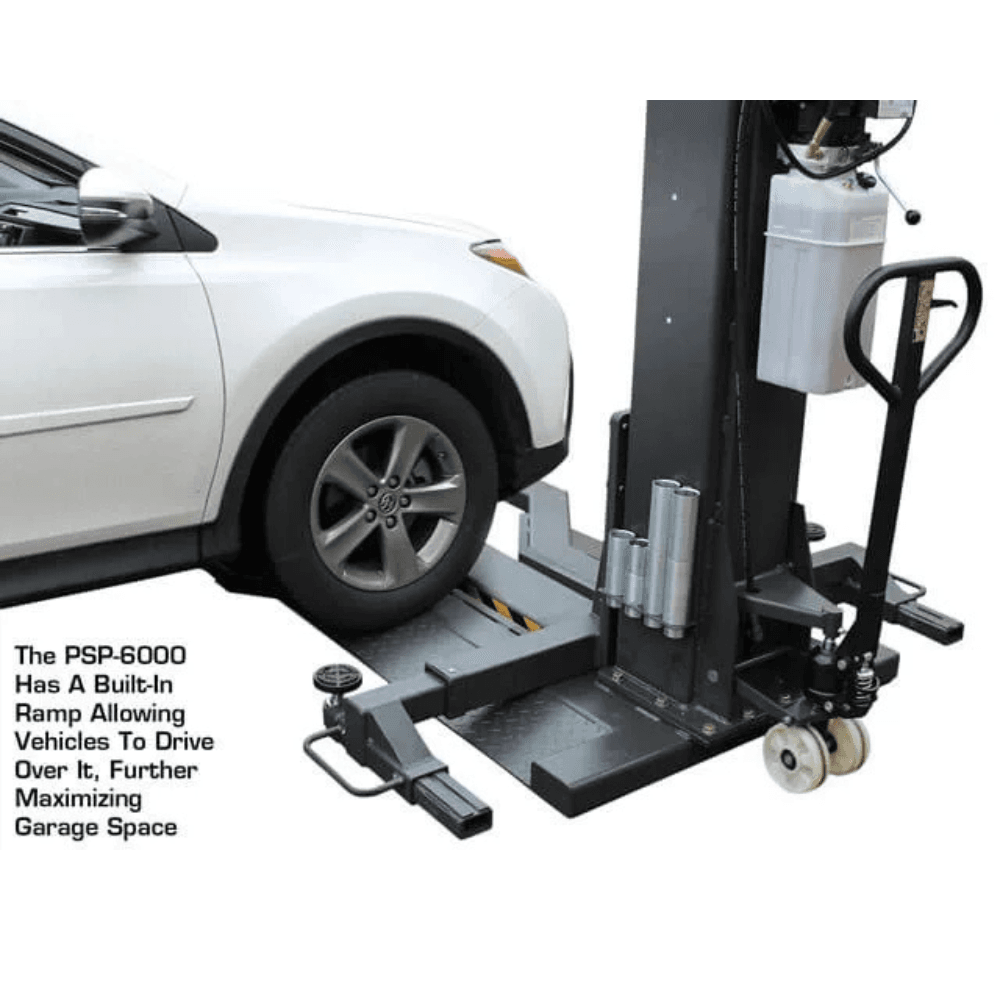

- Built-In Drive-Over Ramps – Makes loading and unloading vehicles effortless.
- Single-Point Lock Release – Simplifies lock disengagement for controlled descent.
- Two-Stage Telescoping Swing Arms – Offers greater flexibility in lifting points.
- Locking Arm Restraints – Keeps lift arms securely in place.
- Safety Chain Break Mechanism – Automatically locks the carriage in place in case of chain failure.
- 110V Electric Operation – Runs on a standard power supply with a 30-amp breaker.
- Includes a Free 8-Piece Truck Adapter Set – Enhances compatibility for various vehicle types.

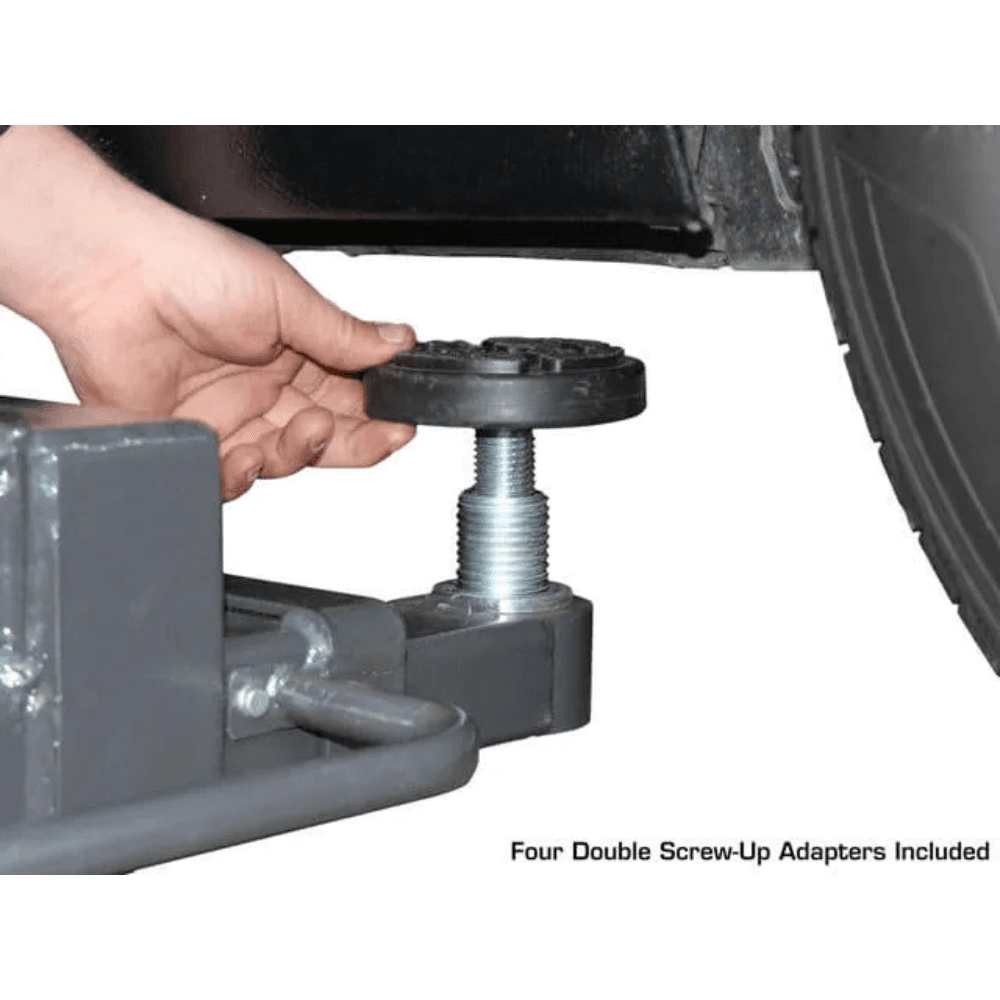

- Double Screw-Up Adapters Included – Allows for fine height adjustments.
- 1-Year Manufacturer Warranty for Parts / 2-Year Warranty on Lifting Structure.
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 6,000 lbs. |

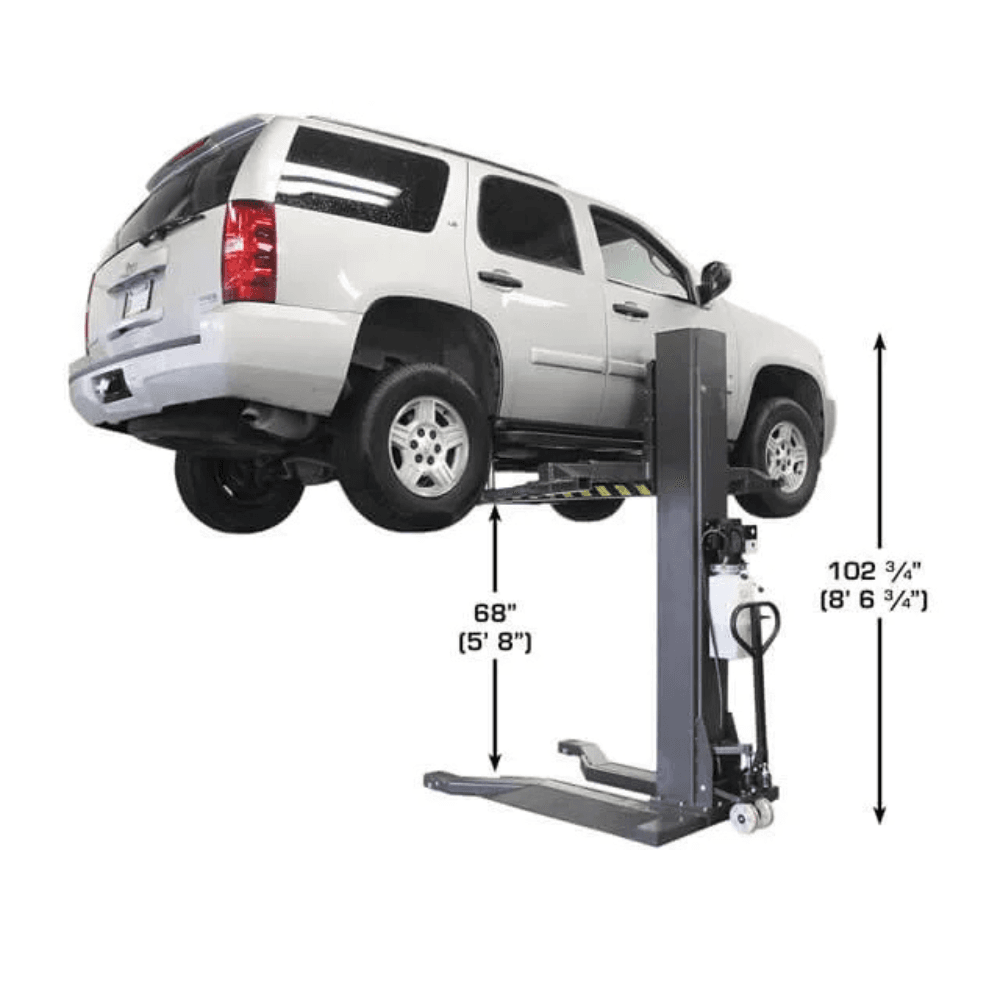

| Overall Height | 102 3/4″ (8′ 6 3/4″) |

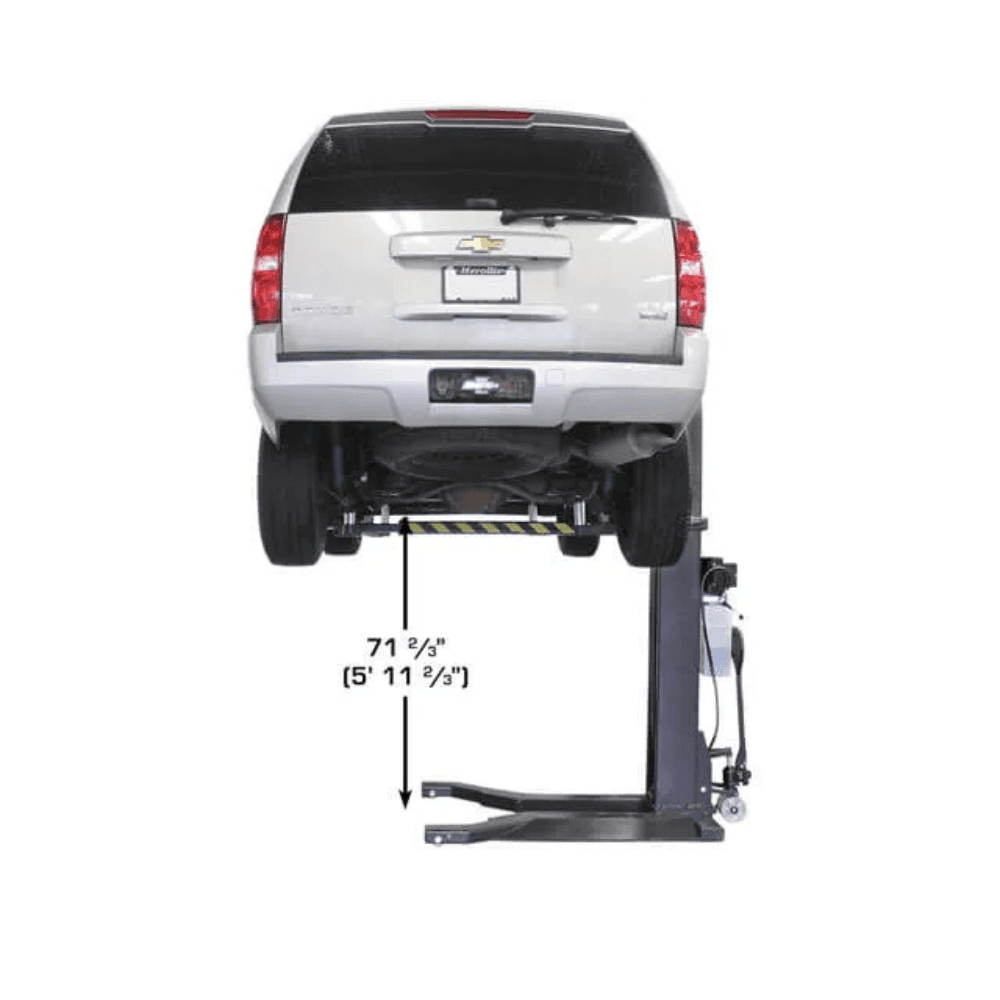

| Max. Lifting Height (Without Truck Adapters) | 71 2/3″ (5′ 11 2/3″) |
| Max. Clearance | 68″ (5′ 8″) |
| Minimum Height | 5″ |
| Overall Maximum Dimensions | 111 1/2″ (L) x 96″ (W) x 102 3/4″ (H) |
| Column Size | 10 1/2″ x 12 1/2″ |
| Distance Between Lifting Pads (Column Side to Offside) | 39 1/2″ to 81″ |
| Distance Between Lifting Pads (Column Side to Column Side) | 53″ to 73″ |
| Distance Between Lifting Pads (Offside Side to Offside) | 54 1/3″ to 91 1/2″ |
| Motor / Electric Requirement | 110V, 30-amp breaker required |
| Oil Requirement | 3-5 Gallons AW32 or AW46 (NOT INCLUDED) |
| Shipping Weight | 1,900 lbs. |
| Adapter Heights | 4 Each: 2.75″, 6” |
| Arm Hole / Adapter Peg Size | 2” |
Why Choose the Atlas PSP-6000?
The Atlas PSP-6000 is the perfect solution for garages and service shops needing a portable, space-saving vehicle lift. Its compact yet powerful design allows for easy storage and movement, while its high lifting capacity and built-in safety features ensure reliable operation.
For a durable, mobile, and efficient single-post lift, the Atlas PSP-6000 is a top-tier choice!
