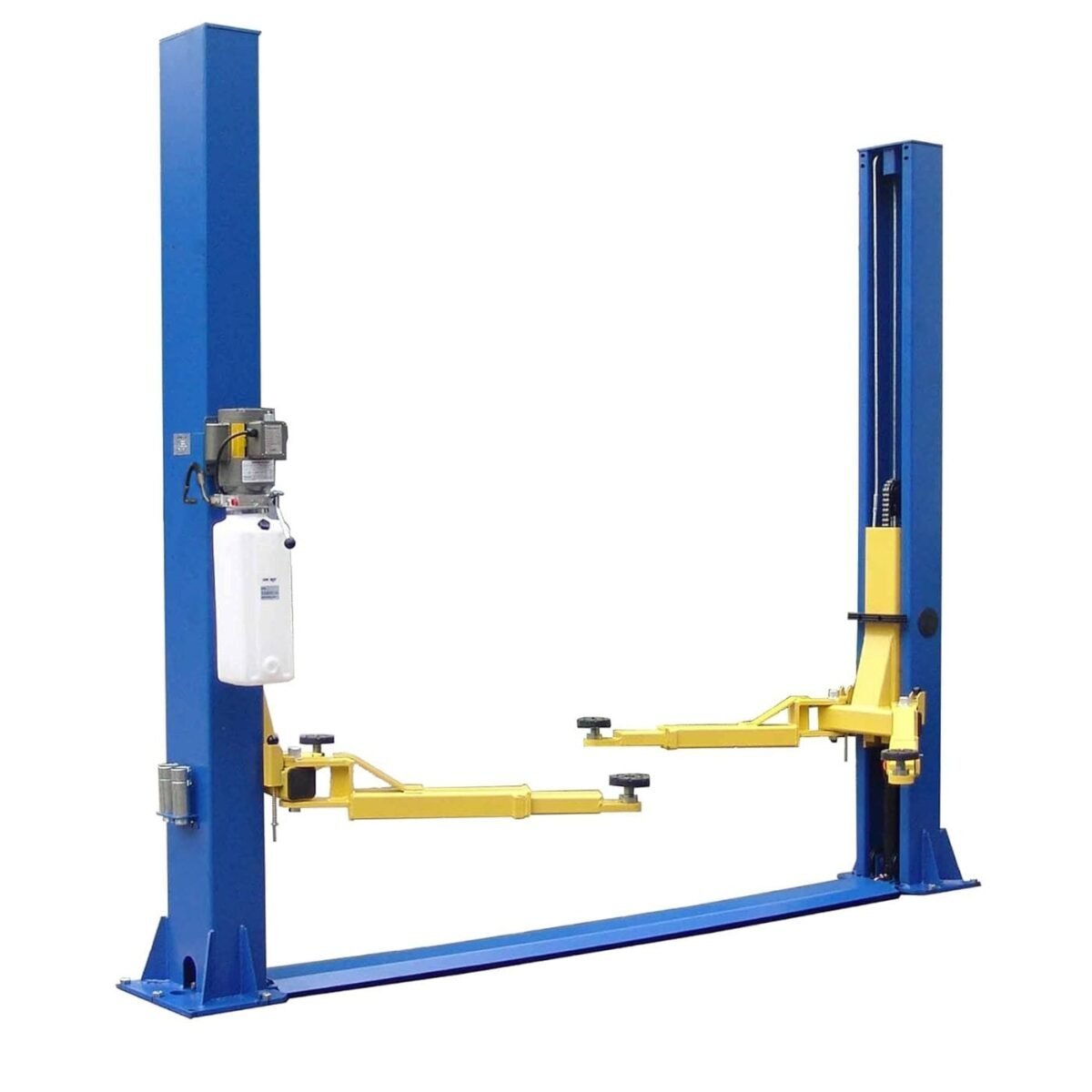

Auto Lift AL2-9K-FX 9,000 lb. 2 Post Floor Plate Car Lift

Symmetric design 9,000 lbs. lifting capacity. These auto lifts feature heavy-duty leaf chains, steel pulleys, and a high-strength cable equalization system—everything you’d expect from a quality lift. The low-profile ‘drop-in’ swivel pads have 1-1/2” adjustable height for flexibility.

Designed with reduced overall width due to front-side power unit mounting, internal hose routing with integrated hose guards, and rubber door guards for vehicle protection.

Key Specifications

• Capacity: 9,000 lbs.
• Overall Height: 111.9″
• Width Overall (with Power Unit): 134.6″
• Max Lift Height: 72″
• Width Between Columns: 110.4″
• Low Pad Height: 4″
• Drive-Thru Clearance: 102″
• Lifting Speed: 50 seconds
• Design: Symmetric
• Floor Type: Floor Plate
• Front & Rear Arm Reach (min/max): 31″ – 45″
• Long Arm Reach (min/max): Same as front/rear
• Cable Diameter: 3/8″
• Column Size: 7-1/4″ x 10-7/8″
• Column Steel Thickness: 5 mm
• Carriage Steel Thickness: 5 mm
• Arm Steel Thickness: 6 mm
• Power: 220V, 20 AMP, Single Phase
• Shipping Weight: 1,265 lbs.

Details

• Symmetric design with 9,000 lbs. lifting capacity
• Heavy-duty leaf chain, steel pulleys, and high-strength cable equalization system

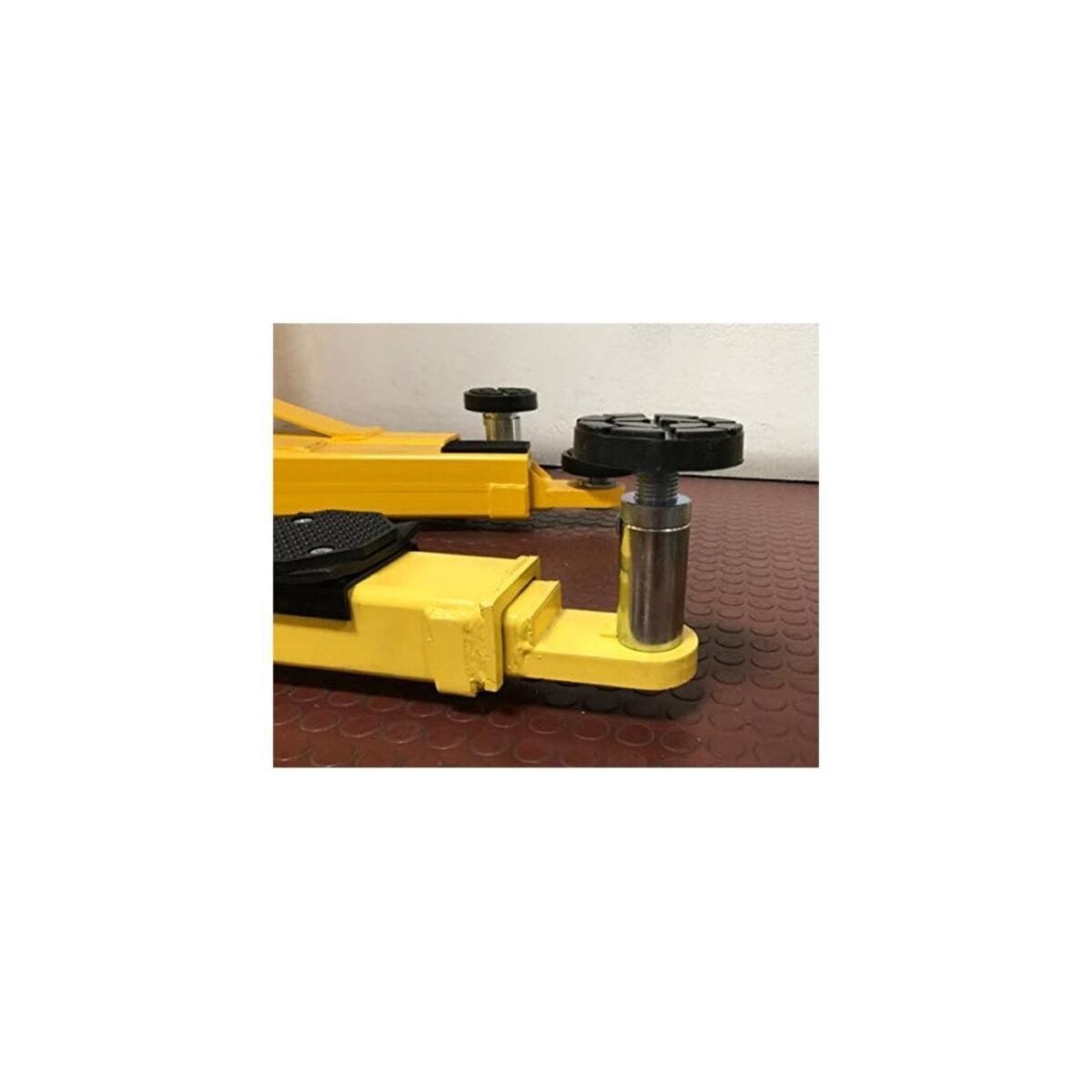

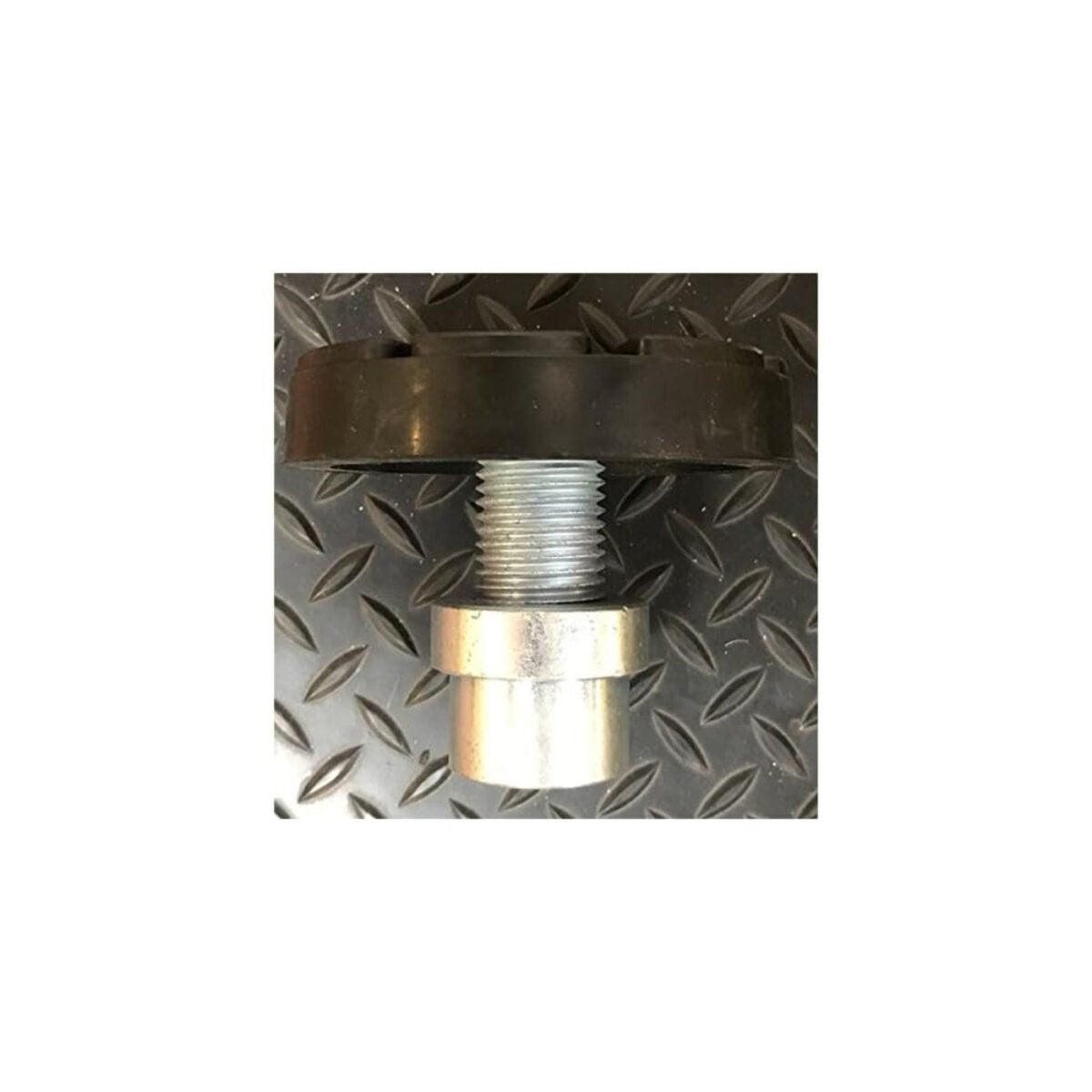

• Low profile ‘drop-in’ swivel pads with 1-1/2” adjustable height
• Reduced overall width with front-side power unit mounting
• Internal hose routing with integrated hose guards
• Rubber door guards to protect vehicle doors

Additional Information

• Load Capacity: 9,000 pounds
• Brand: Auto Lift
• Item Weight: 1,320 pounds (598.74 kg)
• Manufacturer: Auto Lift
